Hydraulic Dumbwaiter

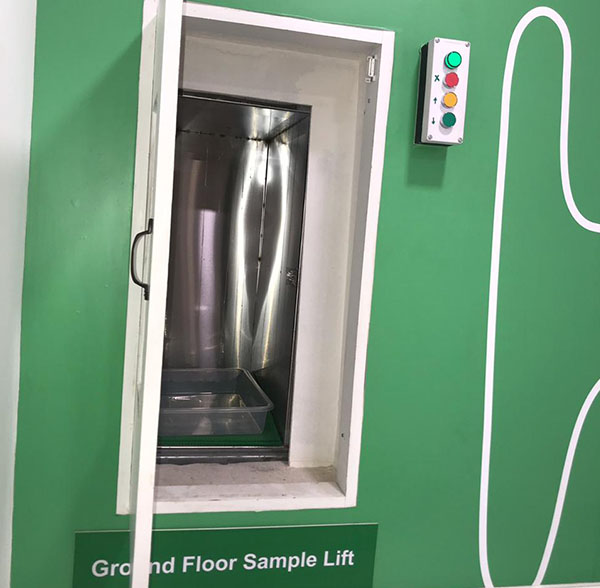

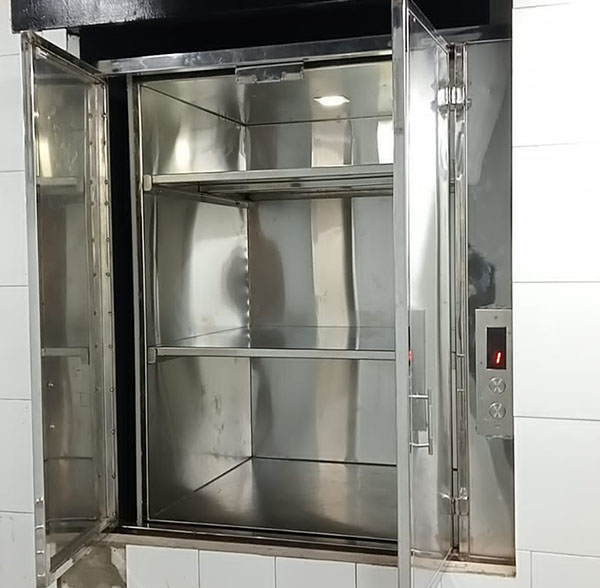

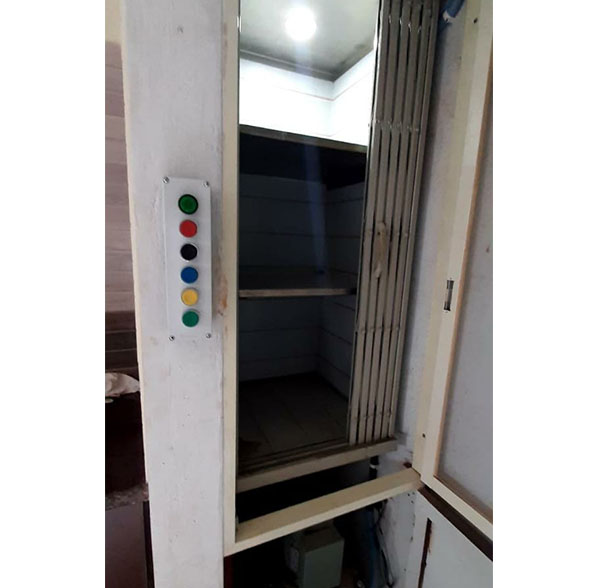

A hydraulic dumbwaiter is a specialized type of elevator designed primarily for the vertical transport of goods rather than passengers. It is commonly used in commercial establishments, restaurants, hotels, hospitals, and other buildings where there is a need to move items efficiently between floors. The dumbwaiter is typically a small enclosed platform or compartment that travels along vertical rails within a shaft or hoistway.

Lifting Process: When the dumbwaiter is called to a specific floor, an electric pump or motor pressurizes the hydraulic fluid, typically oil, inside the cylinder. This creates force that pushes the piston up, raising the platform.
Lowering Process: To lower the platform, the pump or motor releases the pressure in the hydraulic cylinder, allowing the platform to descend under its own weight.

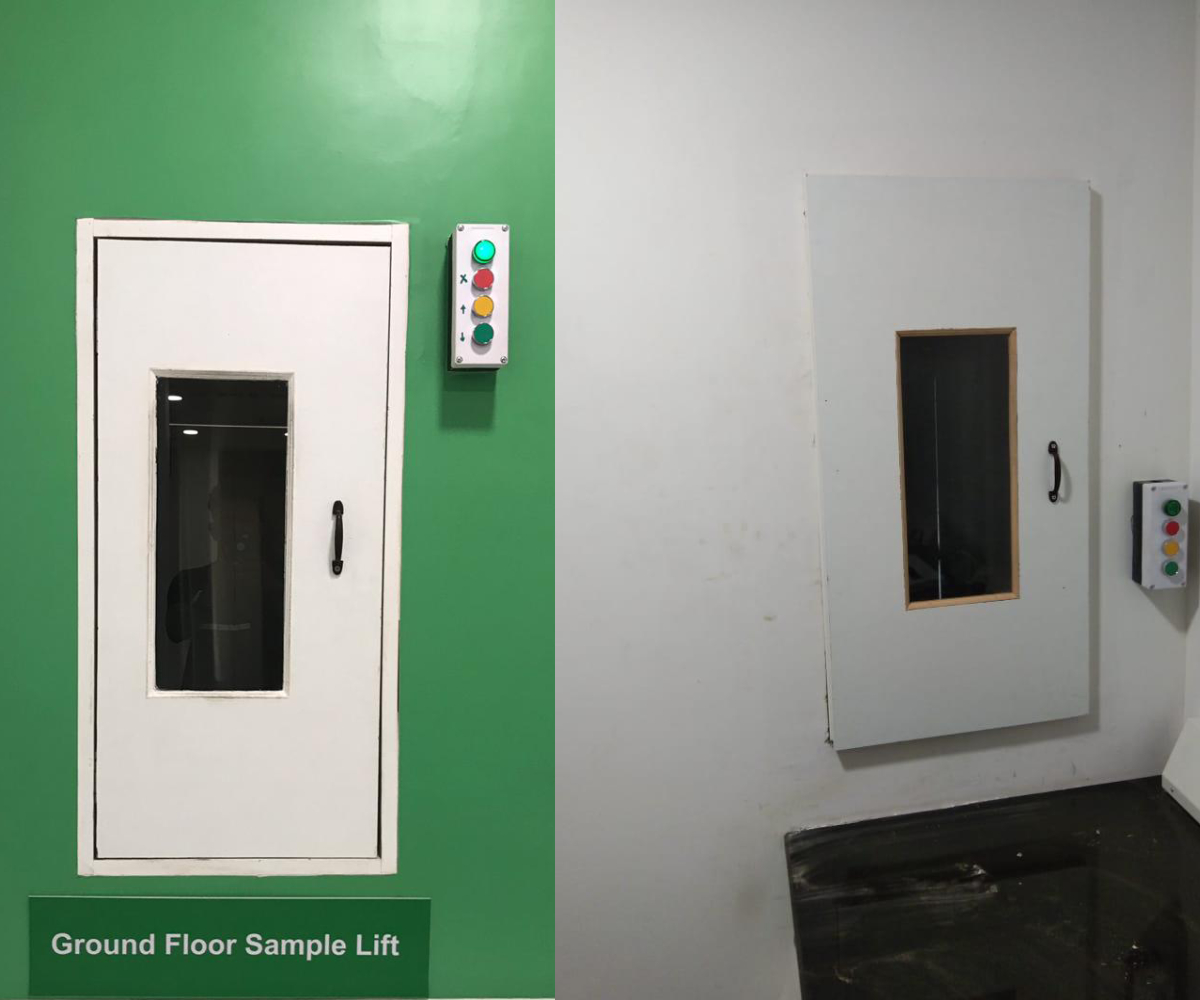

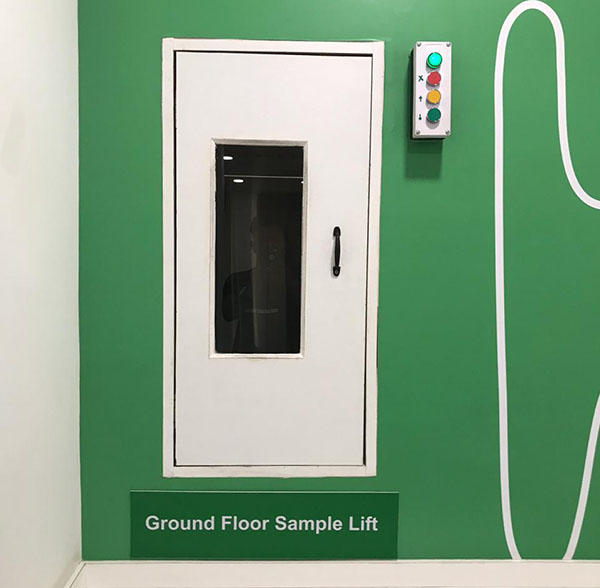

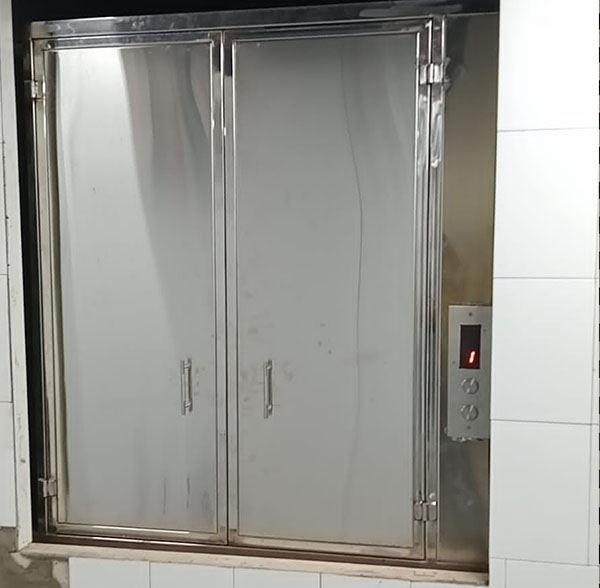

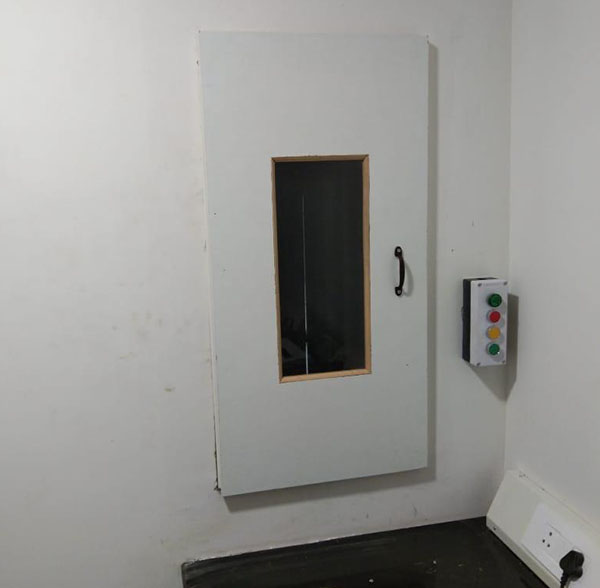

Door Mechanism: Dumbwaiters have doors on each level that open when the lift arrives and close when it's in operation. The doors help secure the shaft and prevent unauthorized access.
Emergency Situations: In case of power failures or other emergencies, most hydraulic dumbwaiters have manual release mechanisms that allow the platform to be manually moved to the nearest floor.

Safety features are integrated to ensure safe operation. For instance, if an overload is detected, the lift may stop or prevent operation until the excess weight is removed.

Dumbwaiters have doors on each level that open when the lift arrives and close when it's in operation. The doors help secure the shaft and prevent unauthorized access.
